Description

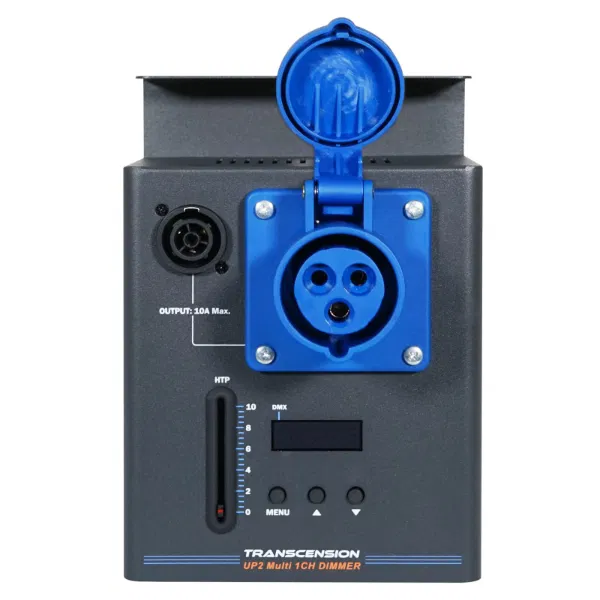

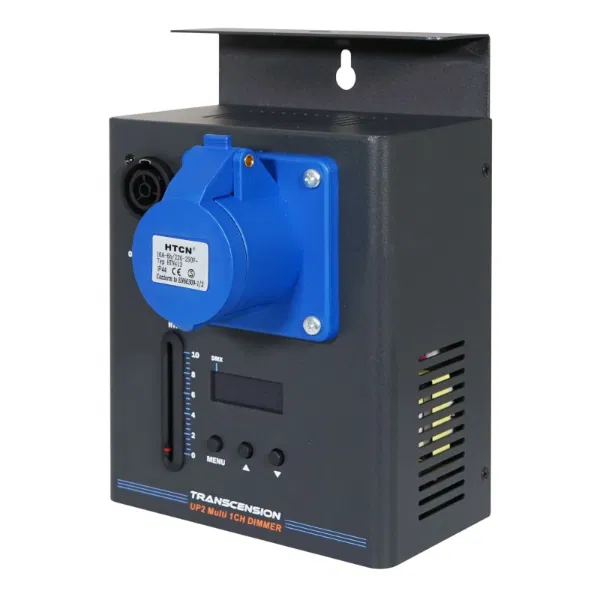

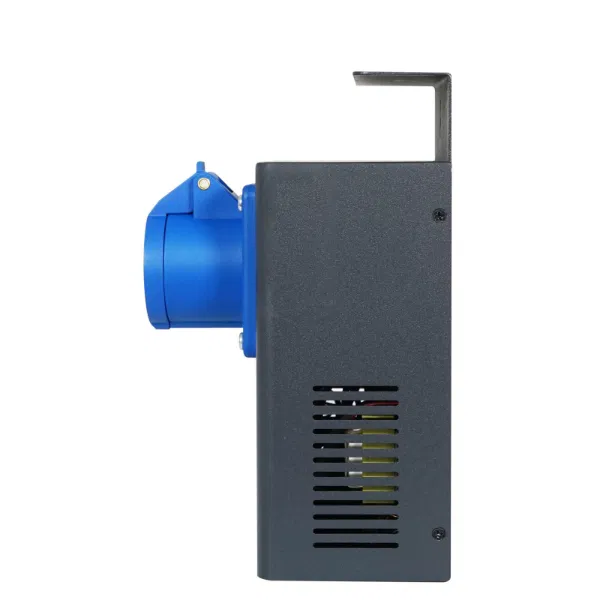

This convection cooled dimmer comes with an external remote HTP fader. These dimmers are perfect for using with standalone fixtures in small studios, for follow spots or for incorporating into and expanding DMX systems. Suitable for use with non-incandescent loads when used as a switch pack.
Features
- Compact, 1 channel DMX/HTP dimmer pack
- Dim preset – Dim limiter
- HTP function
- Can be configured as a switch pack

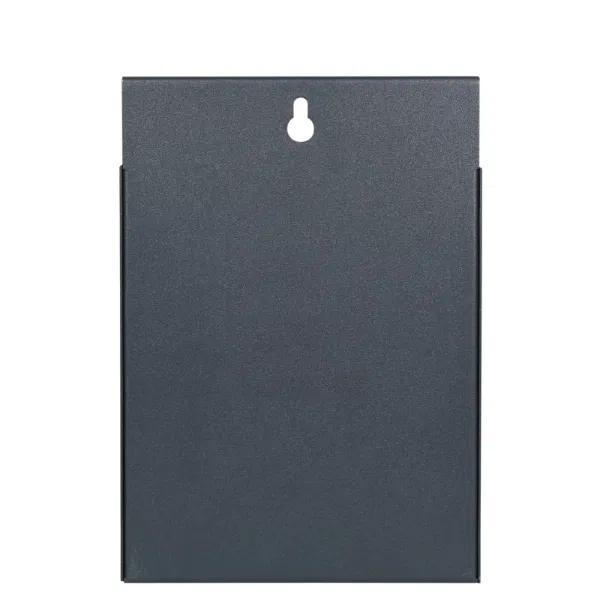

- Easy-to-use mounting bracket

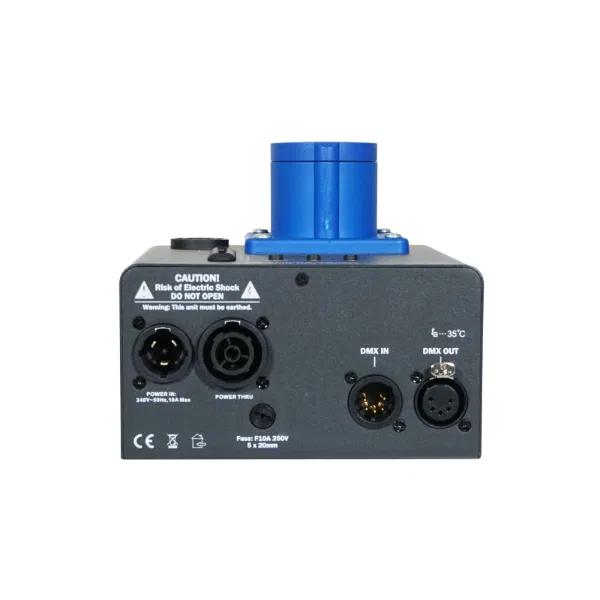

- powerCON TRUE1 TOP input/thru
- 5-Pin XLR input/output
- Output connector: Neutrik powerCON TRUE1 TOP and 16A Ceeform (parallel wired)
- Maximum output: 10A (resistive load)
- Trailing edge dimming technology
- Power supply: 240V, 50Hz
- Fuse: F10A 250V
- UP2 Dimmer dimensions (H x W x D): 210 x 148 x 130mm
- Weight: 1.7kg
