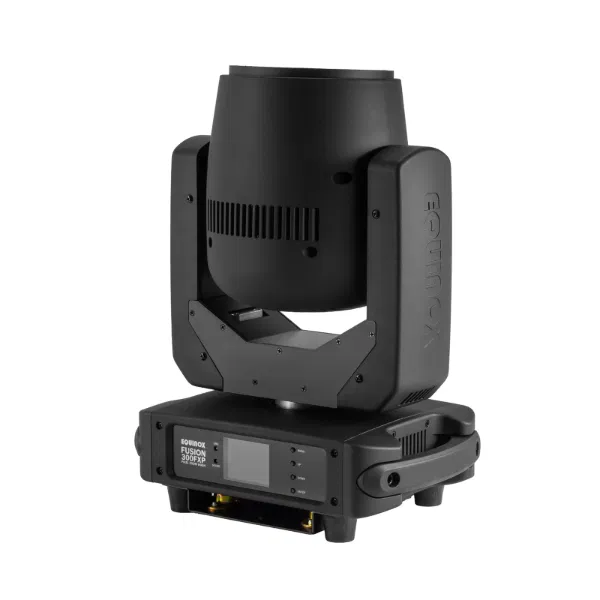

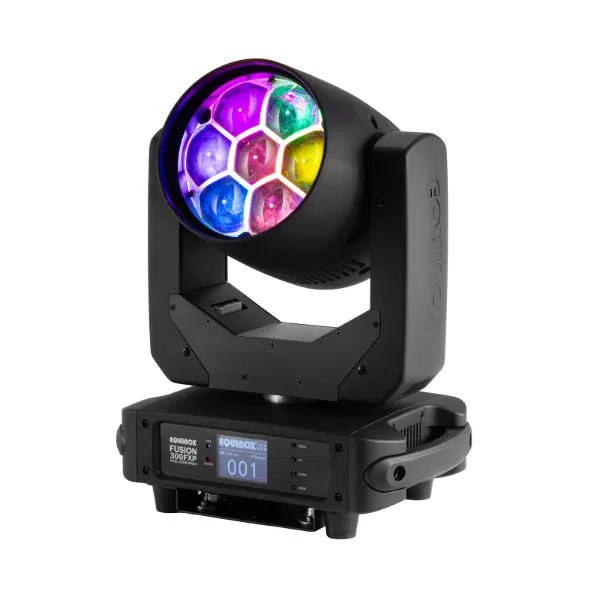

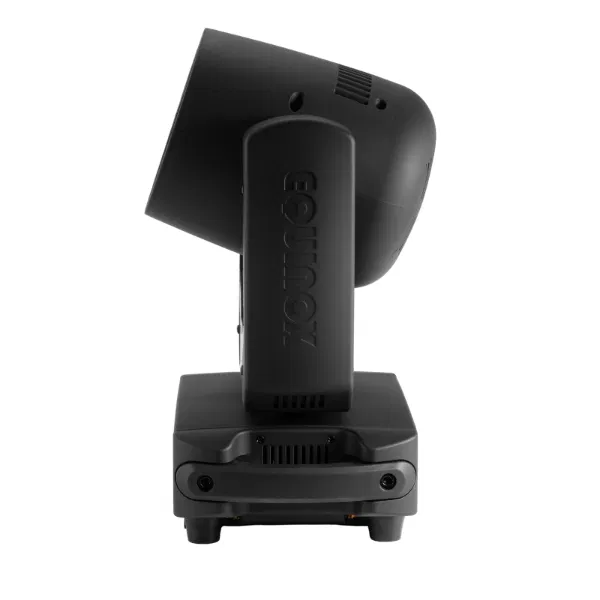

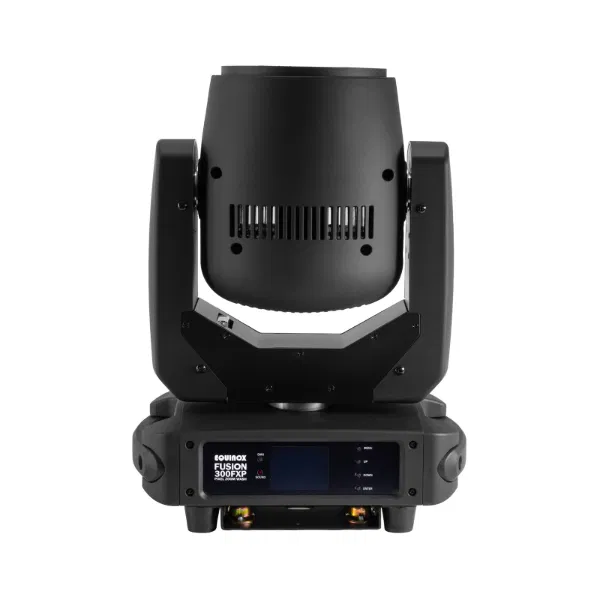

Equinox Fusion 300FXP Pixel Zoom Wash

Description

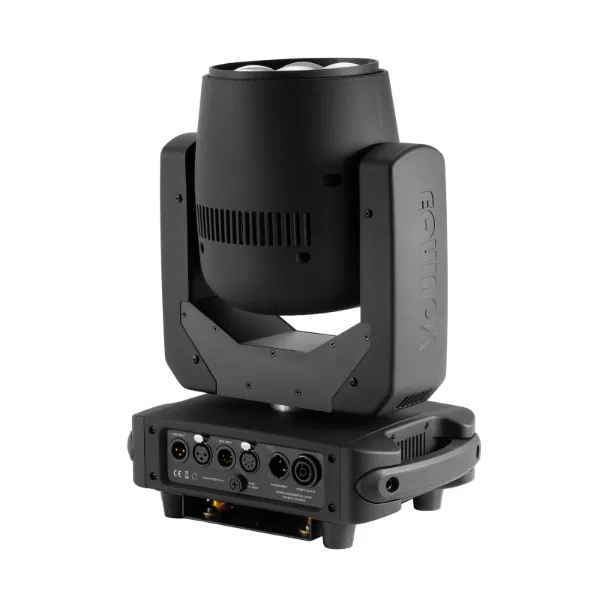

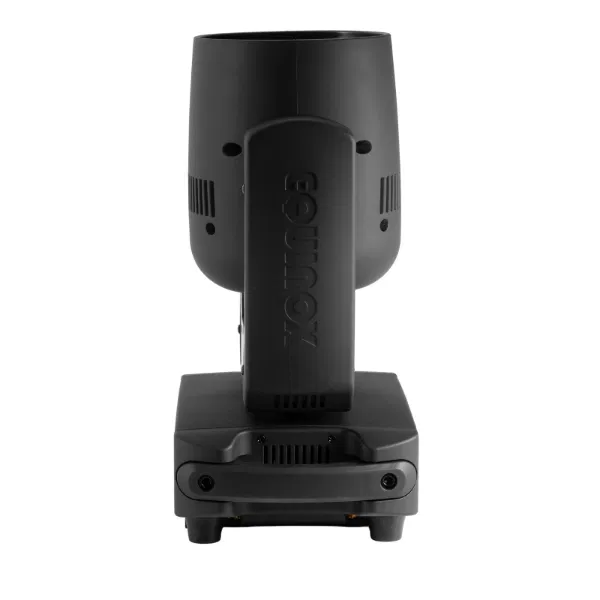

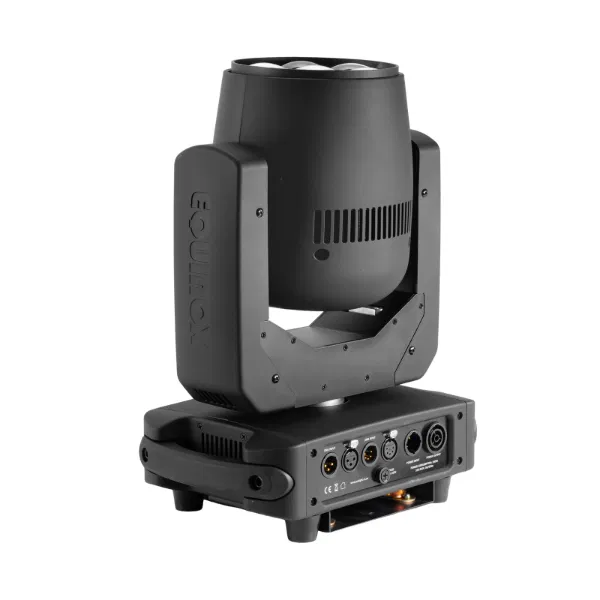

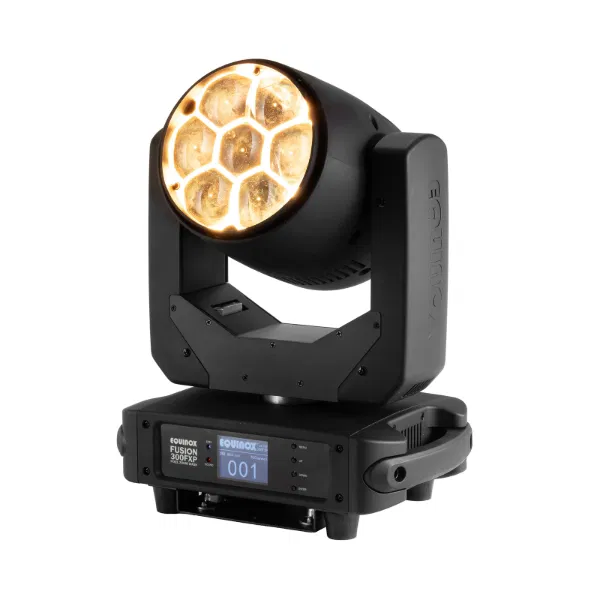

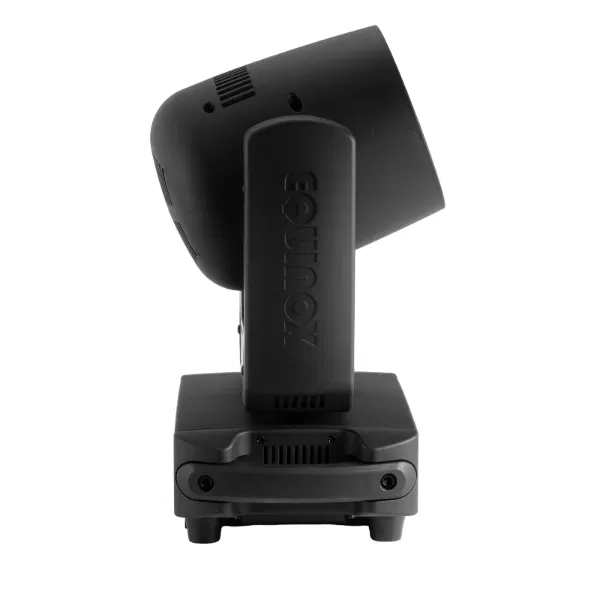

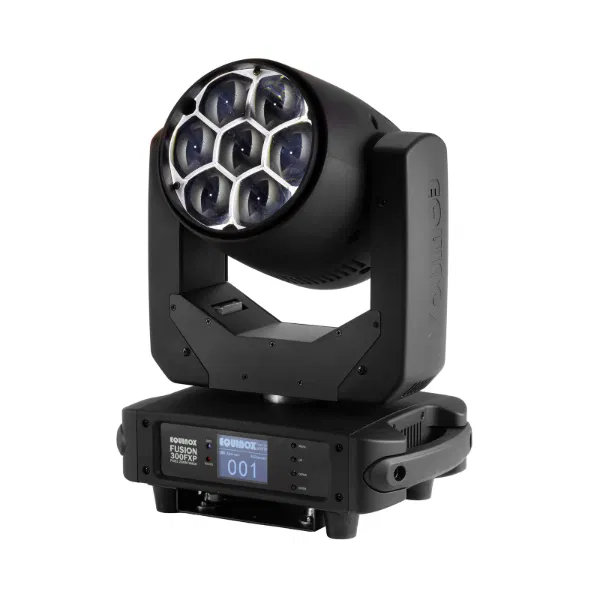

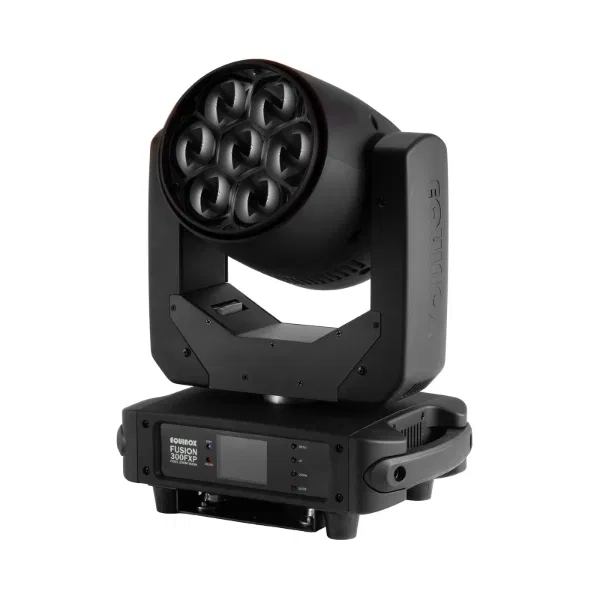

The Equinox Fusion 300FXP Zoom Wash is a compact RGBW moving head fixture featuring 7 x 40W quad-colour LEDs (RGBW), fully pixel mappable to create stunning eye candy effects. A motorised zoom function ranges from a narrow 5° beam angle to a wide 40°, and the front-lens rotation allows superb mid-air multibeam effects and wide washes of colour. This powerful stage lighting unit also includes colour temperature presets, DMX, auto, sound active, manual control, and primary/secondary modes – all accessible via the onboard 4-button menu.

zFeatures

• 7 x 40W quad-colour LEDs (RGBW)
• Adjustable beam angle: 5°–40°
• 5° – 86,570 Lux @ 2m (full on), 40° – 6,156 Lux @ 2m (full on)
• CRI: 70
• Refresh rate: 3kHz
• Motorised zoom
• Full pixel mapping capabilities
• Front lens rotation
• DMX channels: 2/10/14/19/40/45 or 49 selectable
• Auto, sound active, manual control and primary/secondary modes
• Colour temperature presets
• Forward facing show mode
• Pan/tilt auto correction
• 16-Bit pan/tilt positioning
• Pan: 540°, Tilt: 270°
• 0–100% dimming
• Variable strobe
• Quick release omega clamps included
• Square hole spacing supports multiple clamp orientations
• 4 button menu with 2.6” LCD display

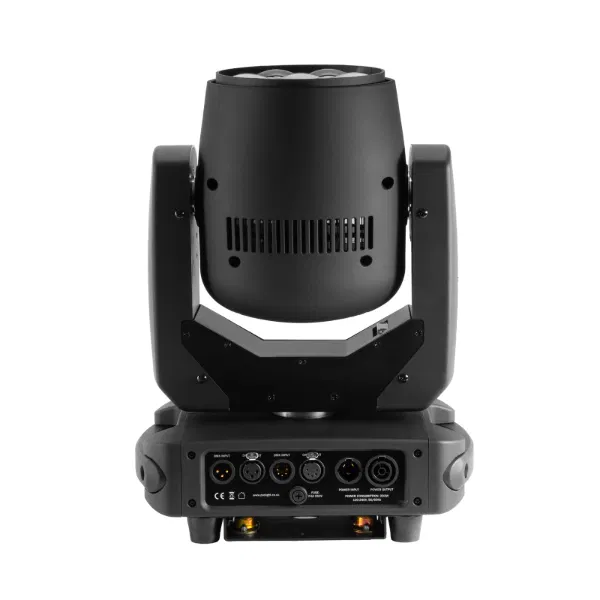

• PowerTwist TR1 input/output
• 5-Pin XLR input/output
• 3-Pin XLR input/output
• Fan cooled

• Power consumption: 300W
• Power supply: 100~240V, 50/60Hz
• Fuse: F4A 250V
• Noise level: 49.3dBA @ 1m
• Dimensions (H x W x D): 385 x 310 x 190mm
• Weight: 8.7kg
